2024 Trek Top Fuel 9.7

Shop the 2024 Trek Top Fuel 9.7 at Biket, South Africa’s official Trek Bikes online store. This full-suspension trail MTB delivers balanced 120 mm travel, modern carbon construction and versatile trail performance — perfect for riders chasing speed, control and consistent trail fun.

OVERVIEW

Top Fuel 9.7 is a quick and nimble full suspension carbon mountain bike that fuses the flat-out speed of a cross-country bike with the trail-munching appetite of a trail bike. It lets you fly up climbs, hammer through flat sections and keep on truckin' on rough descents.

You’re looking for a do-it-all full-suspension mountain bike that's fast and capable of hitting bigger stuff. You want the performance boost of a carbon frame, and you plan to put this bike through its paces on every style of trail, from flowy to techy.

A light and stiff full carbon frame, 120 mm FOX Rhythm fork, 120 mm of rear travel with a FOX Performance Float shock and a 1x12 Shimano SLX/XT drivetrain. Plus 4-piston brakes for confident descents, a Bontrager Line Dropper, and Bontrager Line Comp 30 wheels that are already completely tubeless, including sealant.

The Top Fuel 9.7 is an efficient and capable down country bike that's at home on flowy and technical trails. What sets this model apart is the lightweight carbon frame and solid parts spec that make for great performance at a great value.

The full carbon frame gives you a light, responsive ride
This bike’s killer suspension set-up is both efficient and ready to party

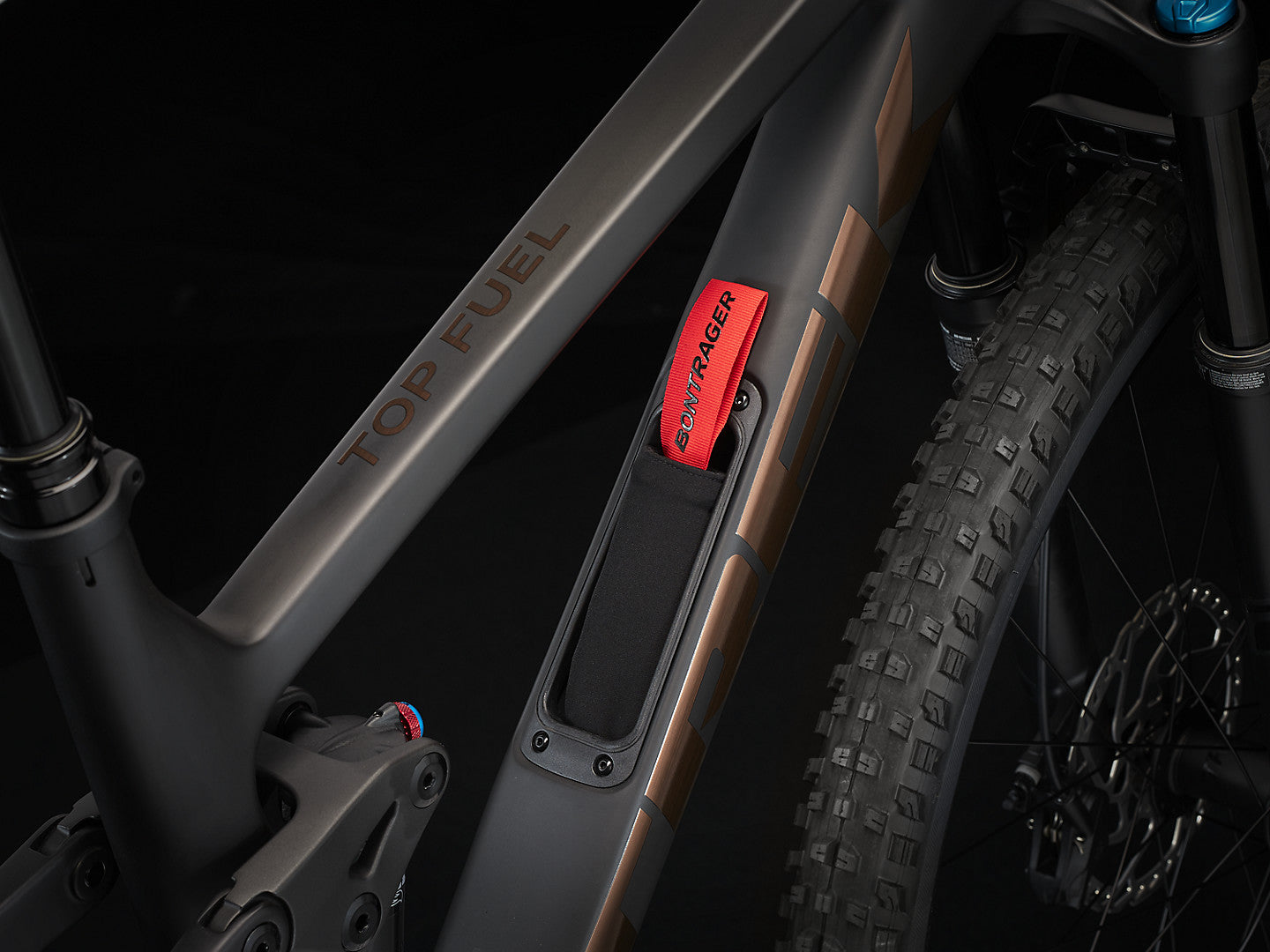

A sleek internal storage compartment gives you a versatile spot to stow tools and gear

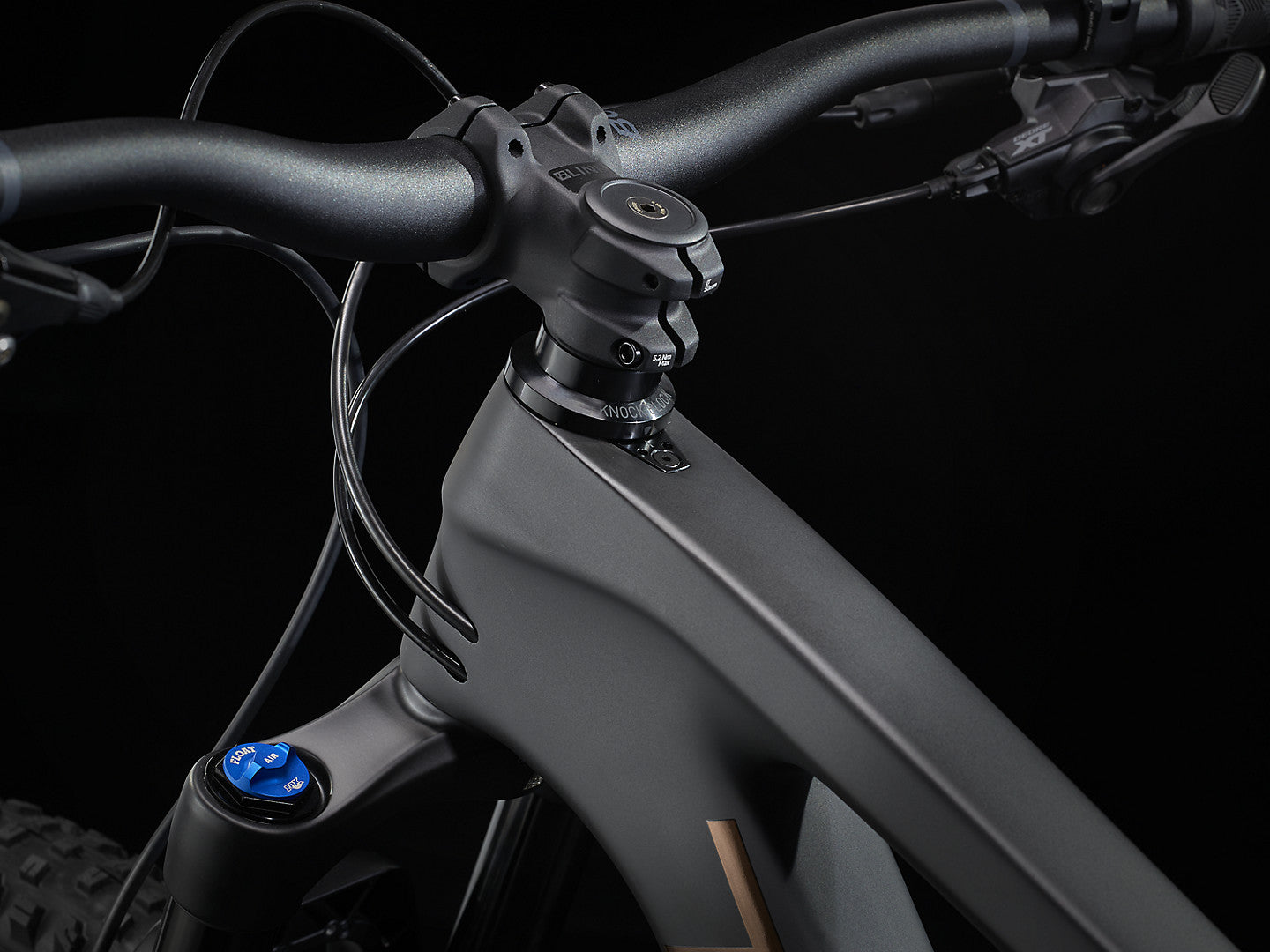

New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

*spec applies to all sizes unless otherwise noted

Frameset

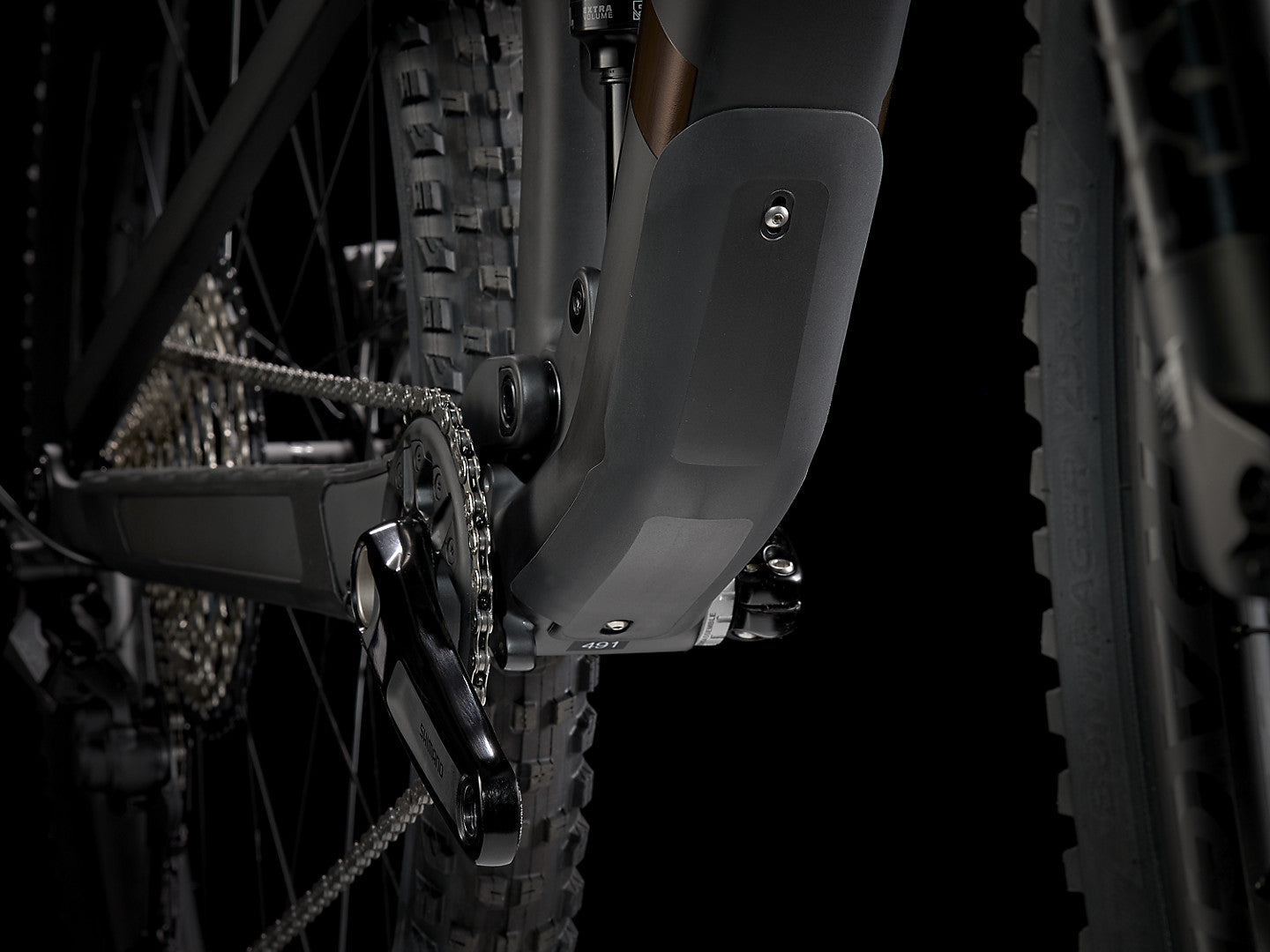

Frame	OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork	Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel

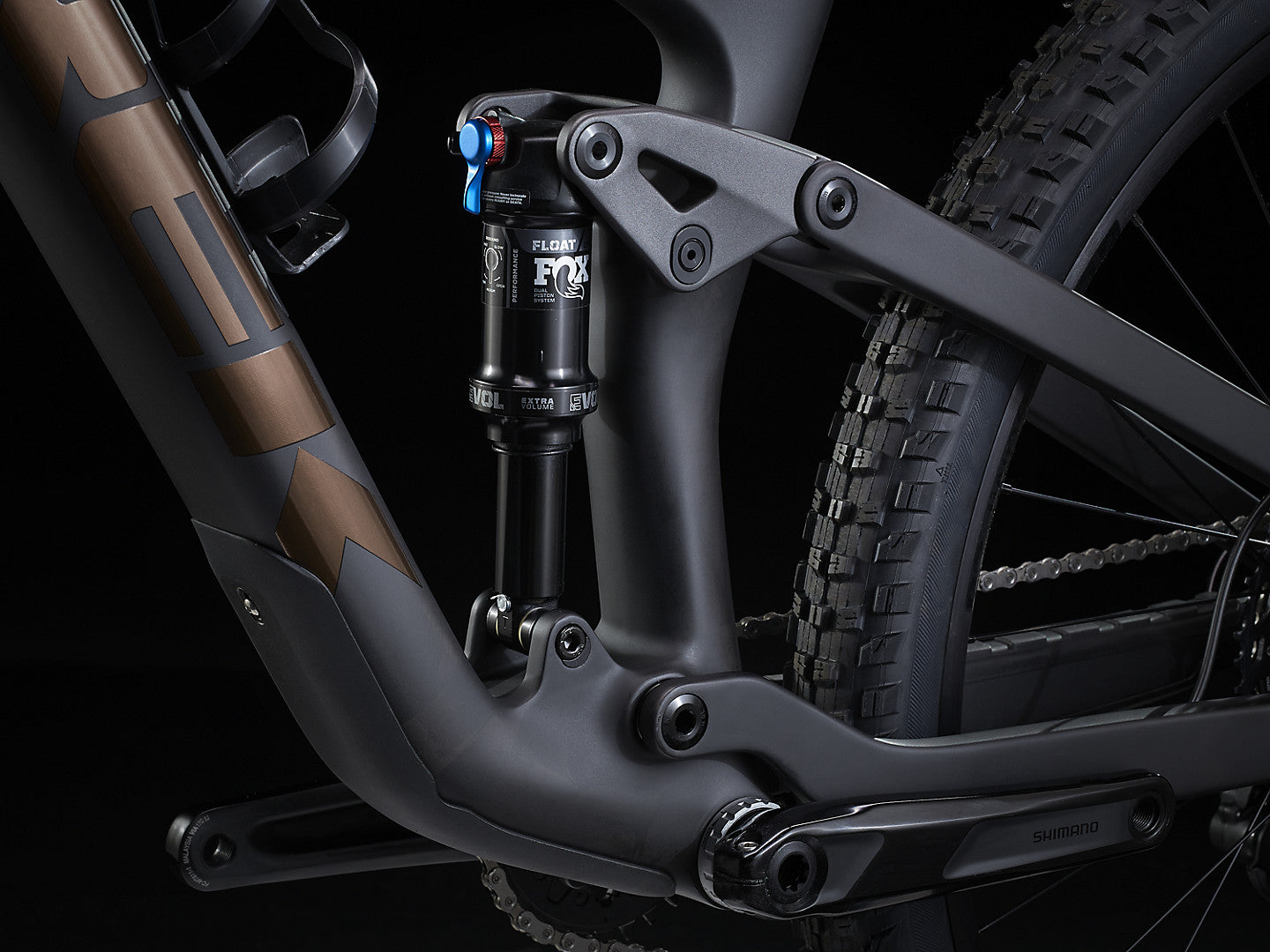

Shock	Fox Performance Float DPS, 3-position damper, 185x50 mm
Max compatible fork travel	130mm (541mm axle-to-crown; XS: 522mm axle-to-crown)

Wheels

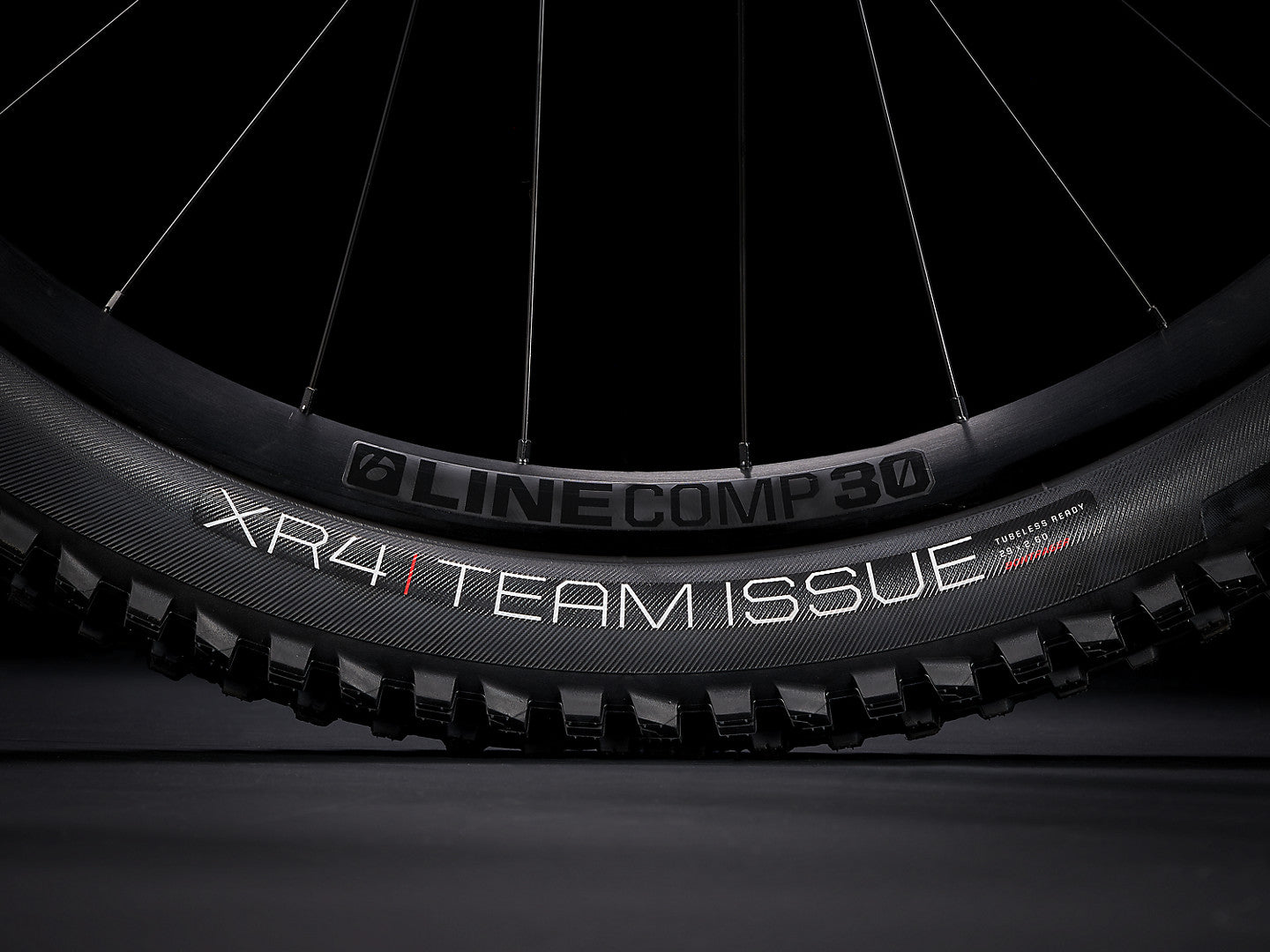

Wheel front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Tyre	Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
*Tyre part	Size: S, M, M/L, L, XL Bontrager TLR sealant, 180 ml/6 oz
*Tyre part	Size: S, M, M/L, L, XL Bontrager TLR valve, 40 mm
Rim strip	Bontrager TLR
Max tyre size	Frame: 29x2.5" (XS - 27.5x2.5") Fork: see manufacturer

Drivetrain

Shifter	Shimano XT M8100, 12-speed

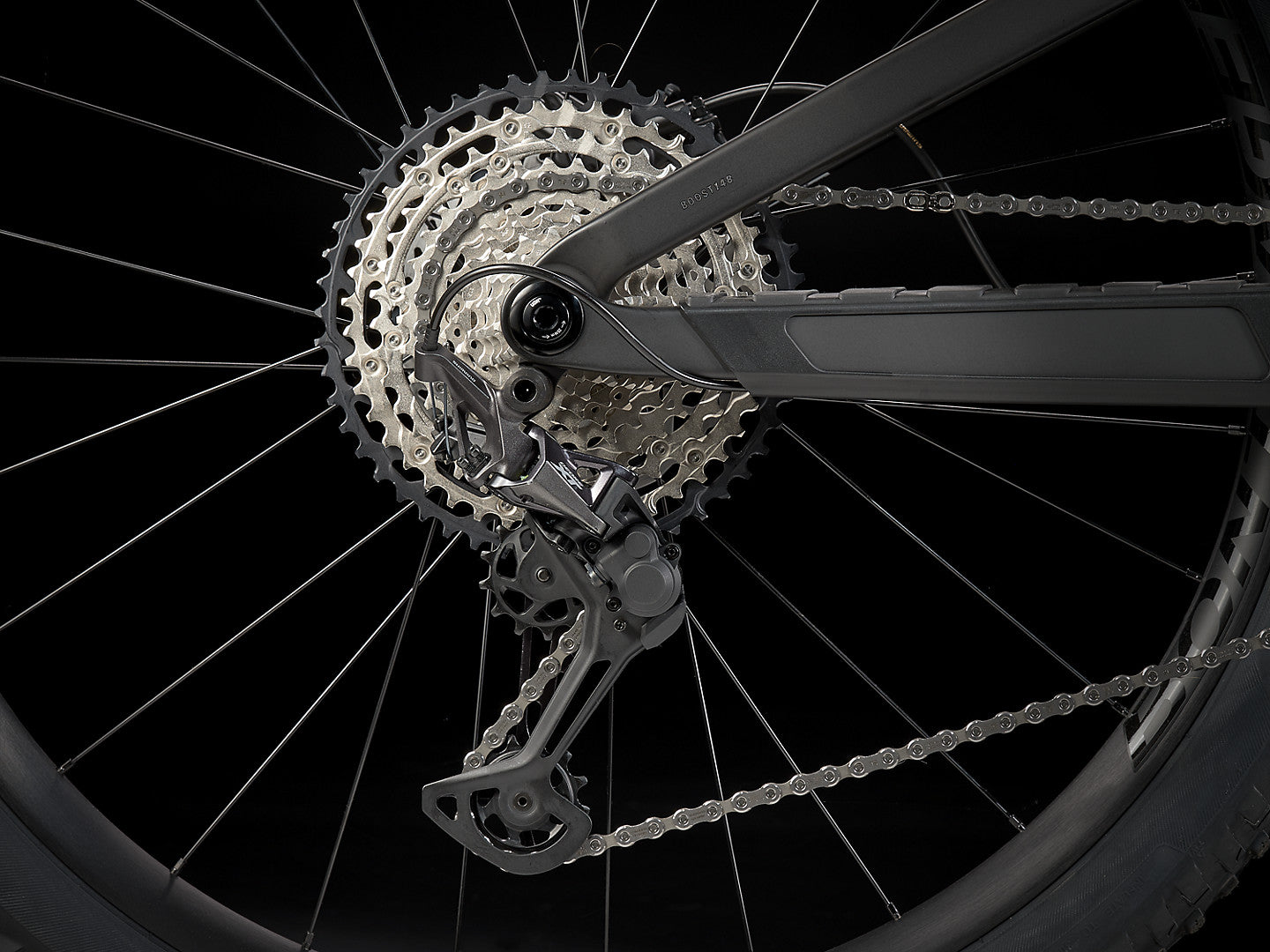

Rear derailleur	Shimano XT M8100, long cage, 51T max cog

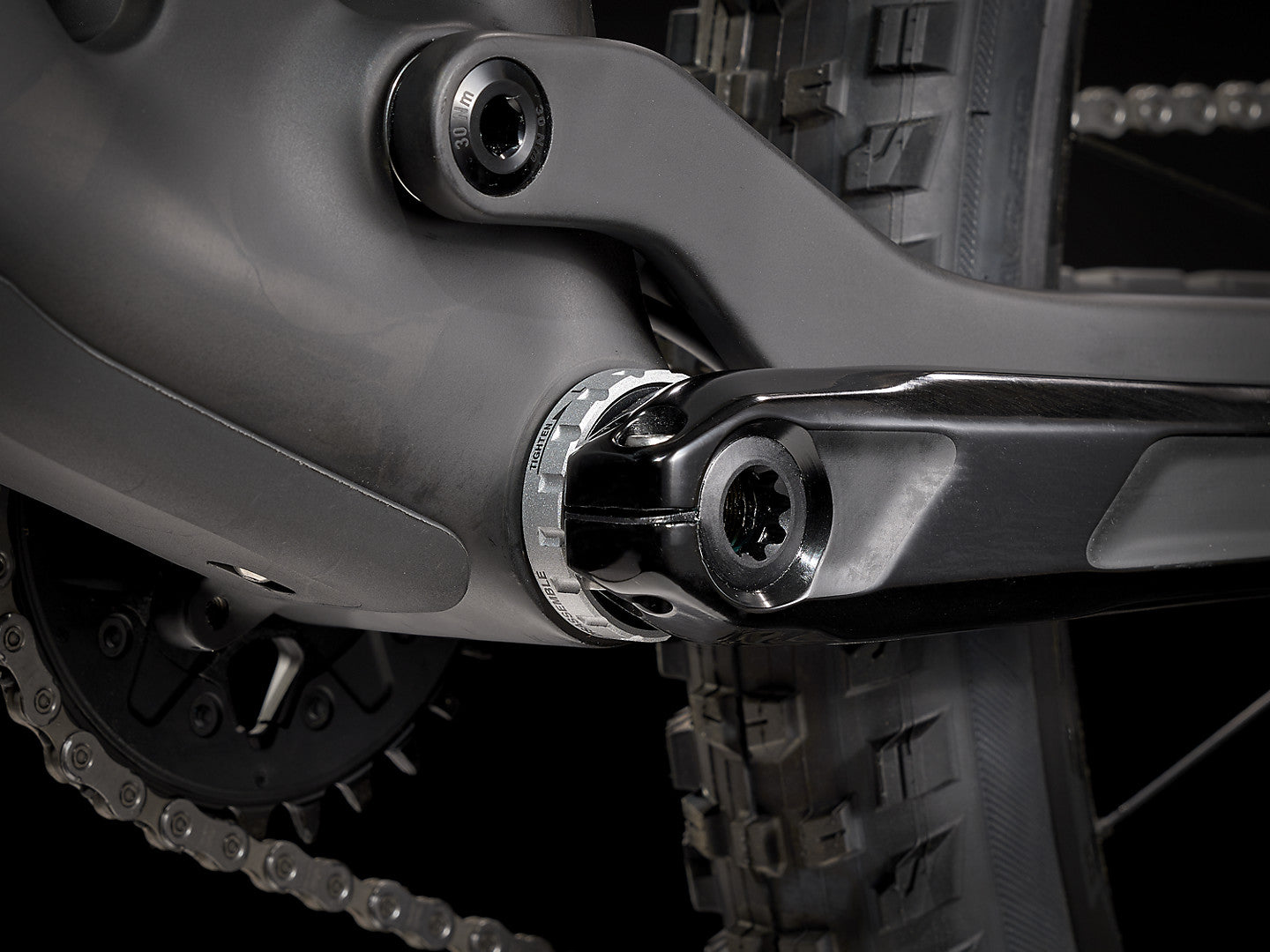

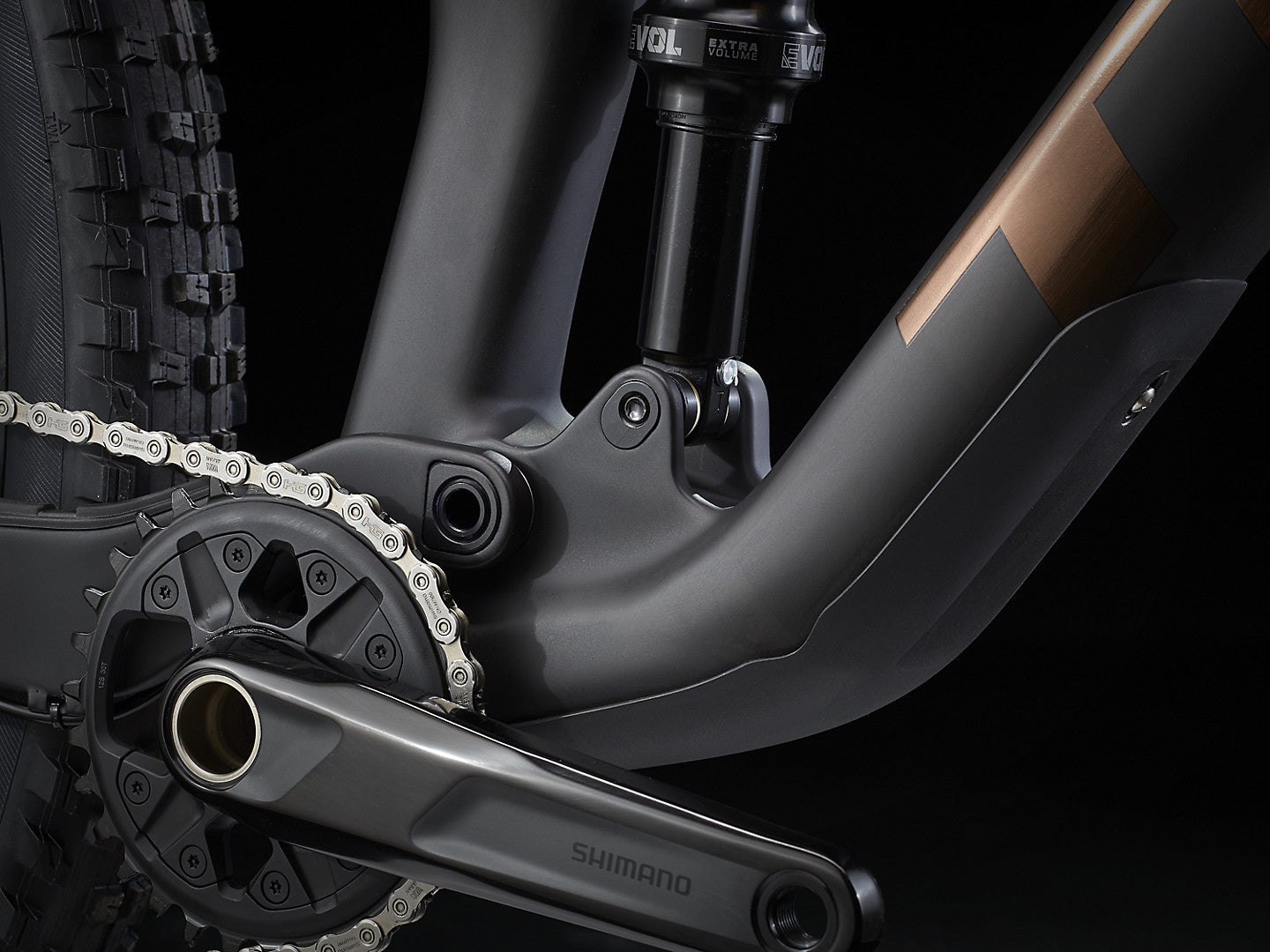

*Crank	Size: S, M, M/L, L Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
*Crank	Size: XL Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length
Bottom bracket	Shimano SM-BB52, 73 mm, threaded external bearing
Cassette	Shimano SLX M7100, 10-51, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	Max: 36T (oval - 34T) Min: 28T

Components

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
	Size: M, M/L TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
	Size: L, XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
*Handlebar	Size: S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
*Handlebar	Size: M, M/L, L, XL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Head set	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

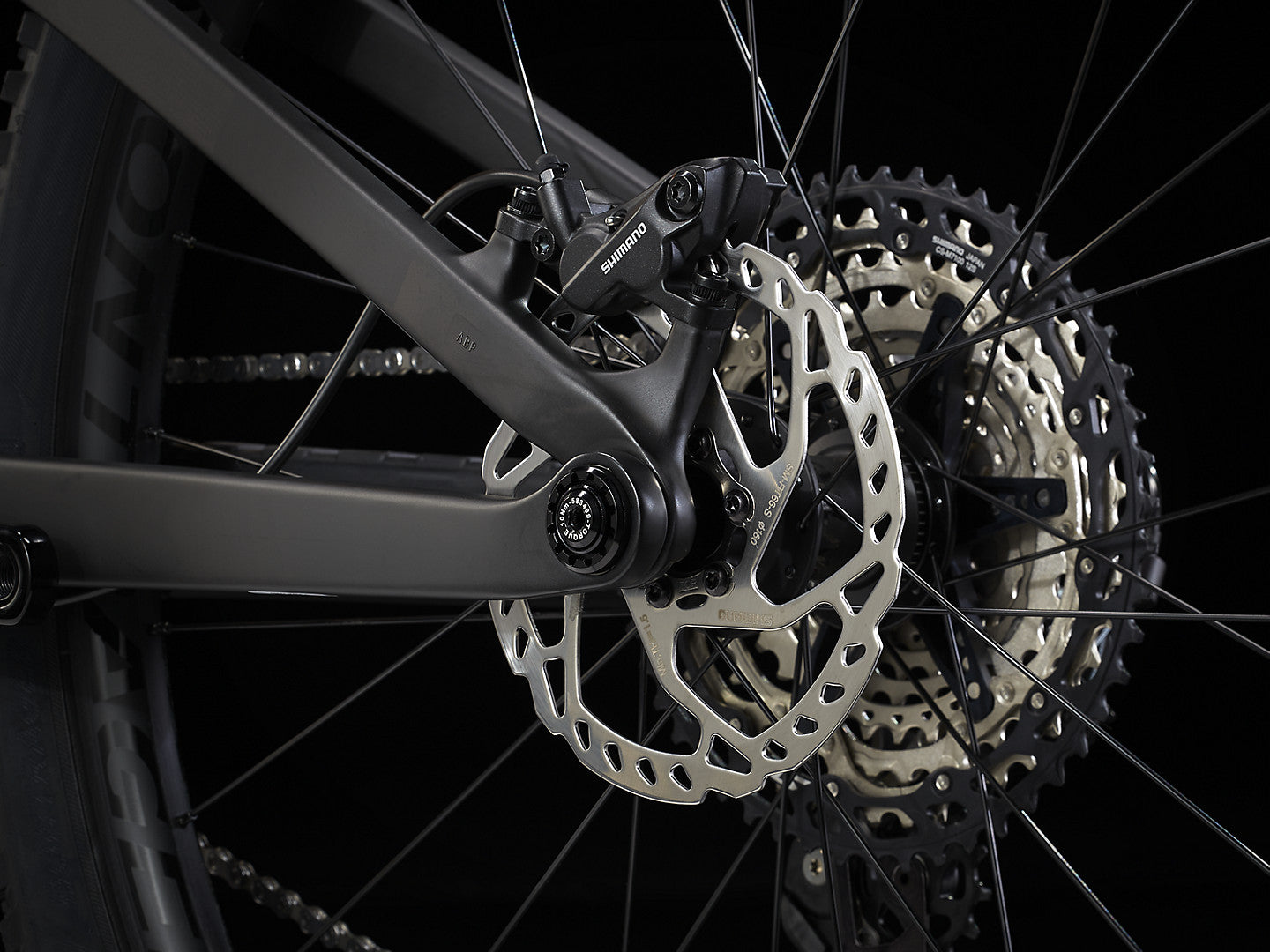

Brake	Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
*Brake rotor	Size: S, M, M/L, L, XL Shimano RT66, 6-bolt, 160 mm
*Brake rotor	Size: S, M, M/L, L, XL Shimano RT66, 6-bolt, 180mm

Accessories

Bag	Bontrager BITS Internal Frame Storage Bag

Weight

Weight	M - 28.97 lbs / 13.14 kg (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
